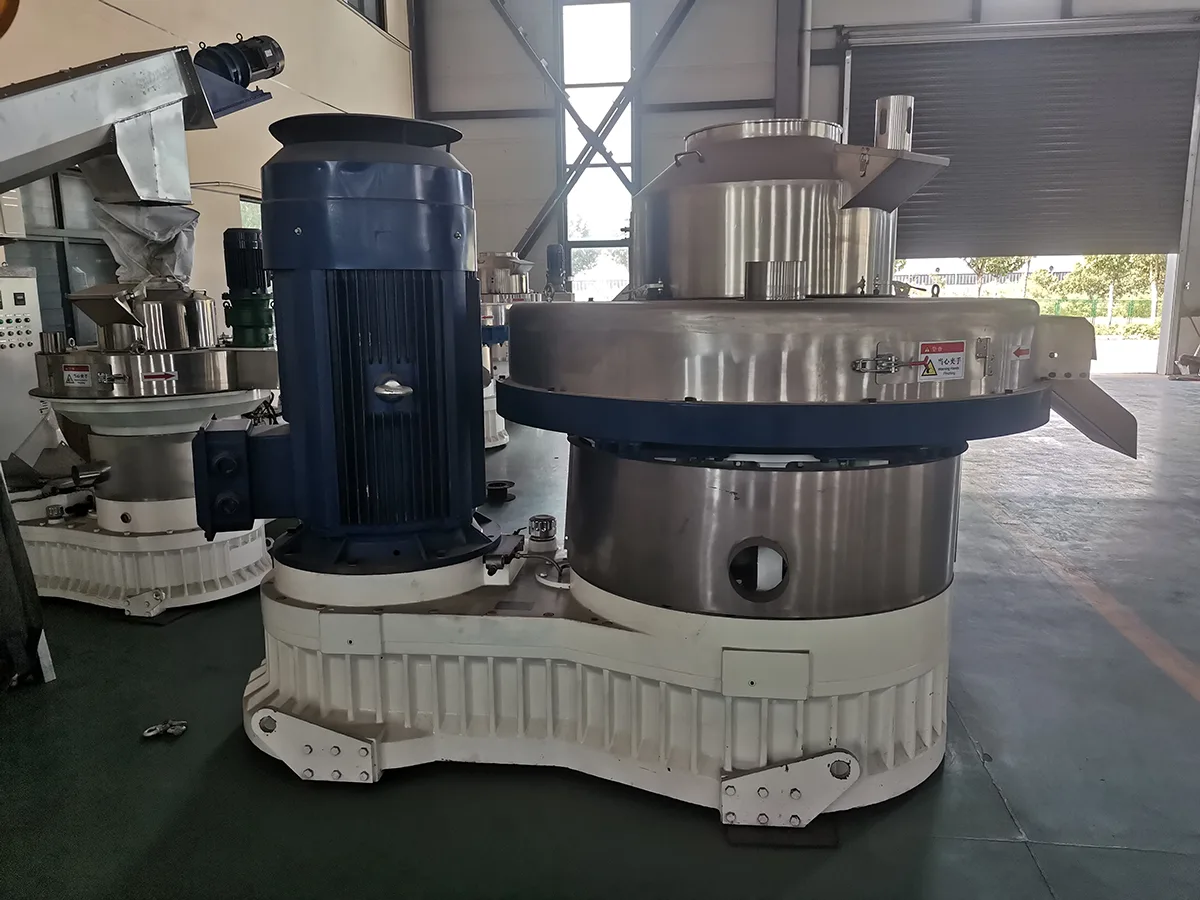

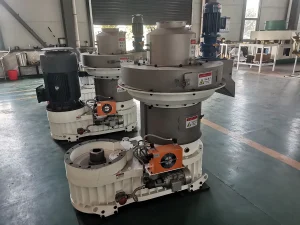

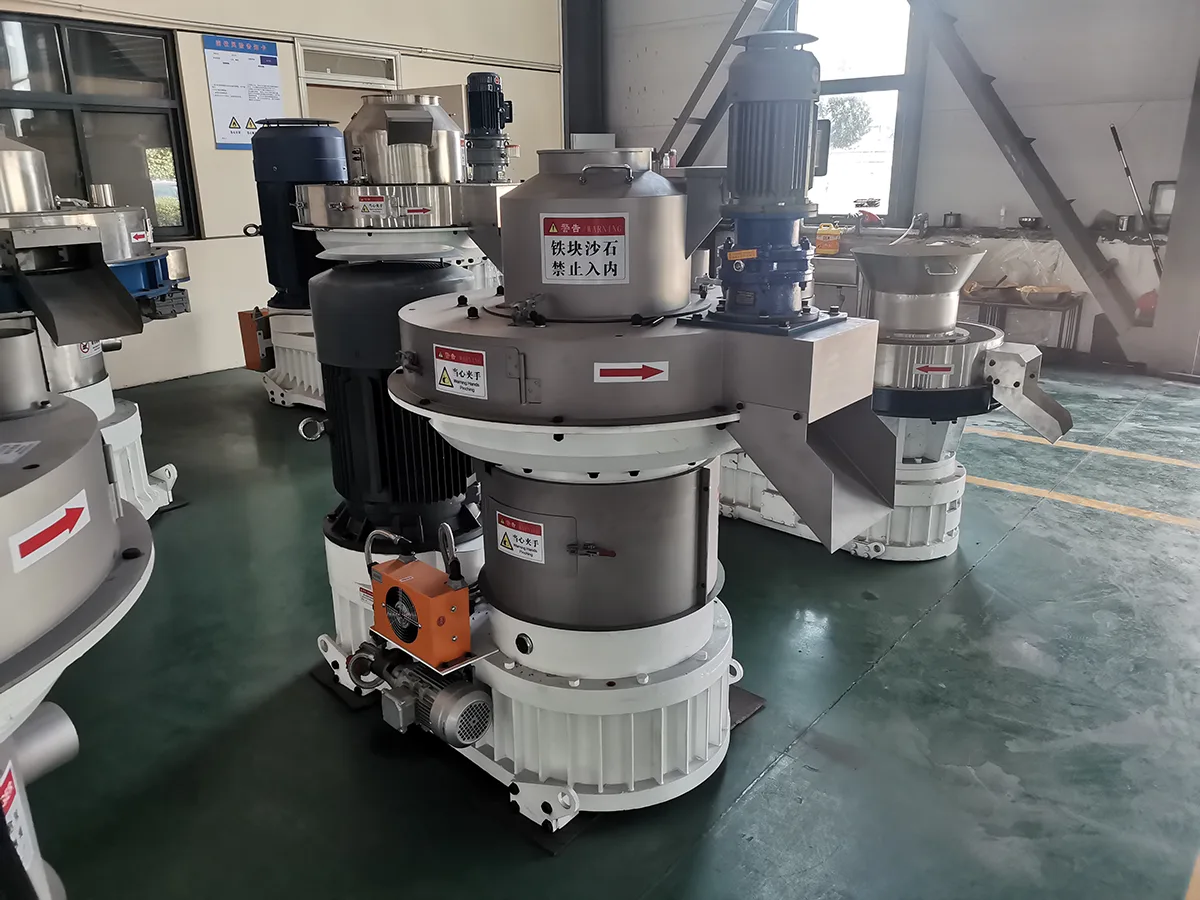

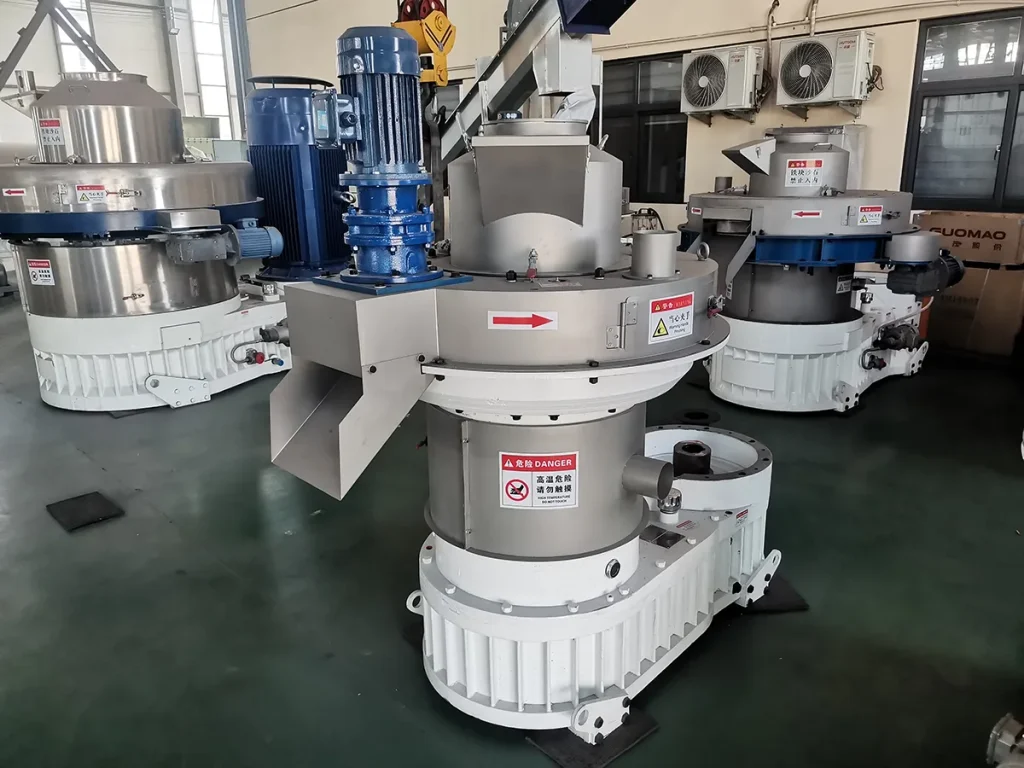

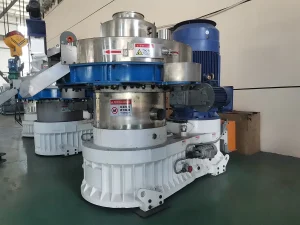

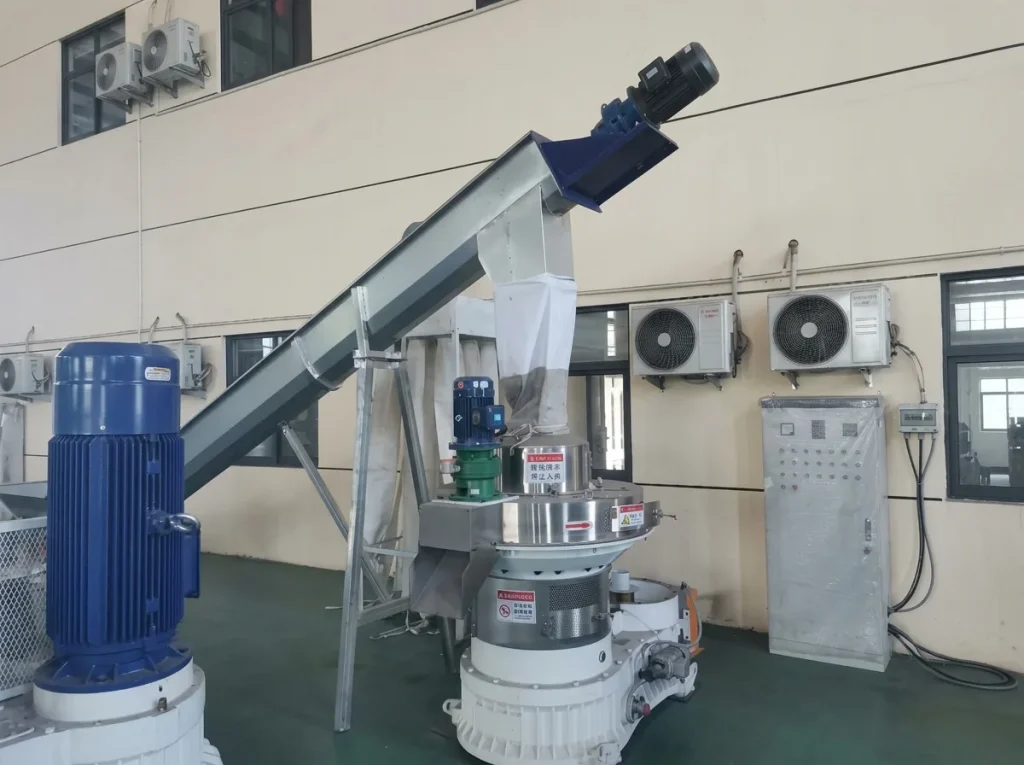

Ring-die biomass pellet machine

For the production of biomass fuel pellets

0-5MM

Feed size

55-280KW

Power

1-4T/H

Capacity

Get detailed specifications in PDF format.

Download PDF

Overview

The industrial pellet mill is core pelletizing equipment optimized for large-scale bio-fuel manufacturing. Engineered to process fine wood particles and plant fibers into uniform solid fuel pellets of ø6–10 mm, it delivers high energy density, low ash content, and smooth combustion, making it the ideal choice for thermal power stations, industrial steam generation, district heating systems, and bio-energy export processing.

High Efficiency

High pelletizing density, stable and continuous performance.

Wide Application

Suitable for fine wood particles, plant fibers, and agricultural residues.

Durable Design

High-quality wear-resistant components ensure a long service life.

Easy Maintenance

Simple structure, smooth operation, and convenient die replacement.

Key Specifications

Model	power (kw)	Feed size（mm）	Discharge size (mm)	capacity (t/h)
450	55kw	≤ 5	6-10	0.8-1
470	75kw	≤ 5	6-10	1-1.2
560	132kw	≤ 5	6-10	1.8-2.2
650	160kw	≤ 5	6-10	2.2-2.8
700	160kw	≤ 5	6-10	2.8-3
850	250kw/280kw	≤ 5	6-10	3.5-4

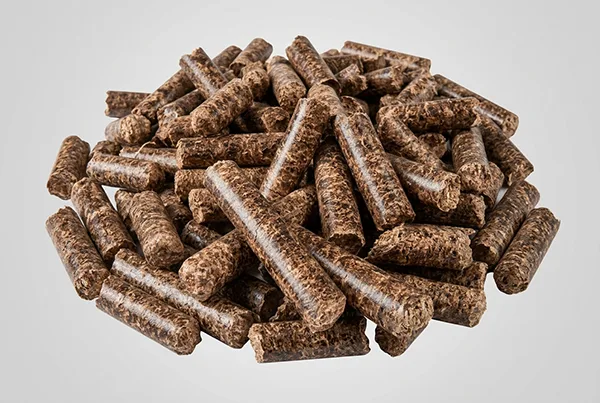

Discharge Size Options

8 mm

Standard Pellet Fuel Dimensions

10 mm

Dimensions of industrial pellet fuel

Applications

Biomass Power Plant

Industrial Steam & Heating

District & Commercial Heating

Residential Heating

Agricultural & Livestock

Need Help Choosing The Right Machine?

To contact our team, please click “Contact Us”.

Specifications

Detailed technical data and performance of our Comprehensive Wood Crushers.

MT-450
Host Power	55KW
Feed Size	≤ 5mm
Output Size	ø 6-10mm（Adjustable）
Mold Type	Ring mold
Bag-type dust collector	9 bags
Power distribution cabinet	supporting facilities
capacity	0.8-1 T/H
Equipment Weight	3300kg
Equipment dimensions（LWH）	190010001740mm

MT-470
Host Power	75KW
Feed Size	≤ 5mm
Output Size	ø 6-10mm（Adjustable）
Mold Type	Ring mold
Bag-type dust collector	9 bags
Power distribution cabinet	supporting facilities
capacity	1-1.2 T/H
Equipment Weight	3500kg
Equipment dimensions（LWH）	190010001740mm

MT-560
Host Power	132KW
Feed Size	≤ 5mm
Output Size	ø 6-10mm（Adjustable）
Mold Type	Ring mold
Bag-type dust collector	9 bags
Power distribution cabinet	supporting facilities
capacity	1.8-2.2 T/H
Equipment Weight	5000kg
Equipment dimensions（LWH）	237012001850mm

MT-650
Host Power	160KW
Feed Size	≤ 5mm
Output Size	ø 6-10mm（Adjustable）
Mold Type	Ring mold
Bag-type dust collector	9 bags
Power distribution cabinet	supporting facilities
capacity	2.2-2.8 T/H
Equipment Weight	6000kg
Equipment dimensions（LWH）	250014002000mm

MT-700
Host Power	160KW
Feed Size	≤ 5mm
Output Size	ø 6-10mm（Adjustable）
Mold Type	Ring mold
Bag-type dust collector	9 bags
Power distribution cabinet	supporting facilities
capacity	2.8-3 T/H
Equipment Weight	6300kg
Equipment dimensions（LWH）	260014302000mm

MT-850
Host Power	250KW/280KW
Feed Size	≤ 5mm
Output Size	ø 6-10mm（Adjustable）
Mold Type	Ring mold
Bag-type dust collector	16 bags
Power distribution cabinet	supporting facilities
capacity	3.5-4 T/H
Equipment Weight	14500kg
Equipment dimensions（LWH）	30019102060mm

The above specifications are for reference only and are subject to change without prior notice.

Need Help?

Our team is ready to help you choose the right model for your needs.

Download Specification

Get detailed specifications in PDF format.

DOWNLOAD PDF

Need Help Choosing The Right Machine?

Please click “Contact Us” or fill out the form.

Product Video

Watch our Comprehensive Wood Crusher in action and see how it works.

Need more information?

Contact our team to get more videos or a customized solution.

Gallery

Explore our Comprehensive Wood Crusher from different angles and details.

High Quality Images

All images are taken from real machines. Click to view larger high-resolution photos.

Download Images

You can download product images for your presentations and promotions.

DOWNLOAD ALL IMAGES

Share This Gallery

Share these images with your colleagues or partners.

Need more photos or information?

Contact our team to get more technical images or a customized solution.

Product Options

Customize your Comprehensive Wood Crusher to match your working conditions and production needs.

1.Power Options

Choose the power source that suits your operation.

Electric Motor

Stable performance, low noise suitable for fixed operation.

2.Mobility Options

Choose the mobility solution for your operation.

Fixed Type

Stable installation, suitable for fixed site.

3.Discharge Size Options

Adjustable output size to match your final use.
