Disc wood chipper

Disc chipper

Equipment for producing 20-50 mm wood chips

0-380MM

Feed size

7.5-90KW

Power

1-14T/H

Capacity

Get detailed specifications in PDF format.

Download PDF

Overview

The disc wood chipper is a primary precision-chipping machine used in the initial stage of wood processing. Specifically designed to handle raw materials such as debarked logs, timber offcuts, and small-diameter round wood, it produces uniform wood chips ranging from 20 to 50 mm in size and is widely used in paper making, wood-based panel manufacturing (MDF & particleboard), biomass energy, and forestry processing sectors.

High Efficiency

High crushing capacity, stable performance

Wide Application

Suitable for a wide range of raw materials and industries.

Durable Design

High-quality components ensure a long service life.

Easy Maintenance

Simple structure, easy to operate.

Key Specifications

Model	power (kw)	Feed size（mm）	Discharge size (mm)	capacity (t/h)
420	7.5kw	≤ ø100	20-50	1
600	15kw	≤ ø150	20-50	3
800	30kw	≤ ø250	20-50	4
950	37kw	≤ ø280	20-50	8
1200	55kw	≤ ø300	20-50	10
1400	90kw	≤ ø380	20-50	14

Feed inlet type

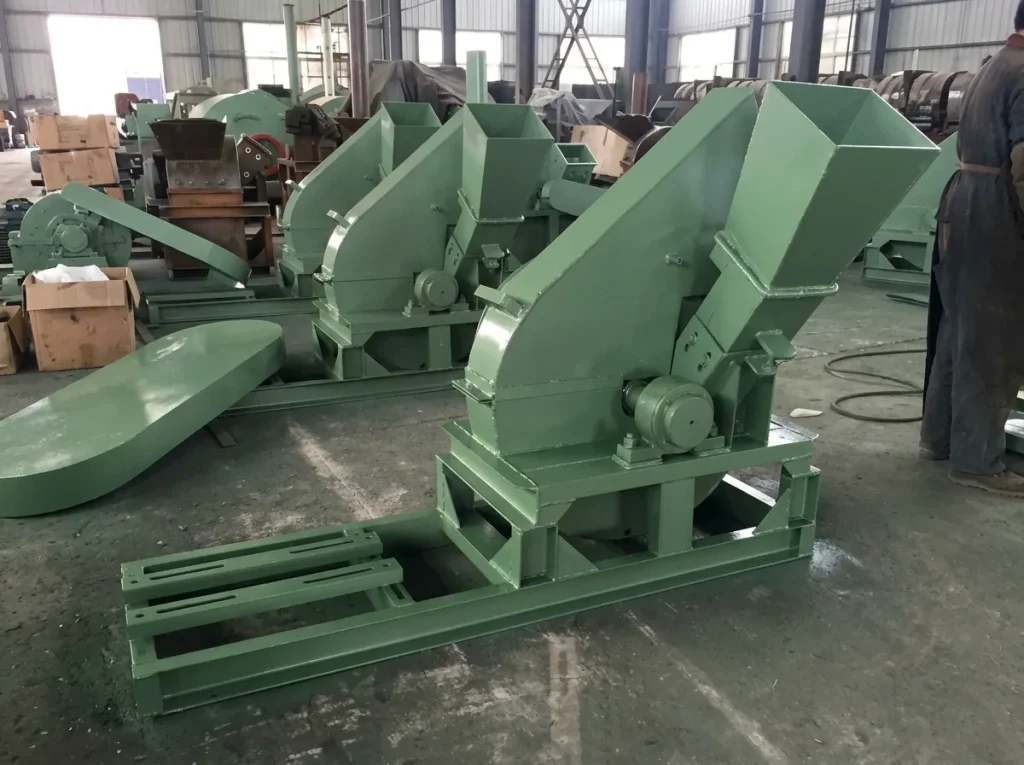

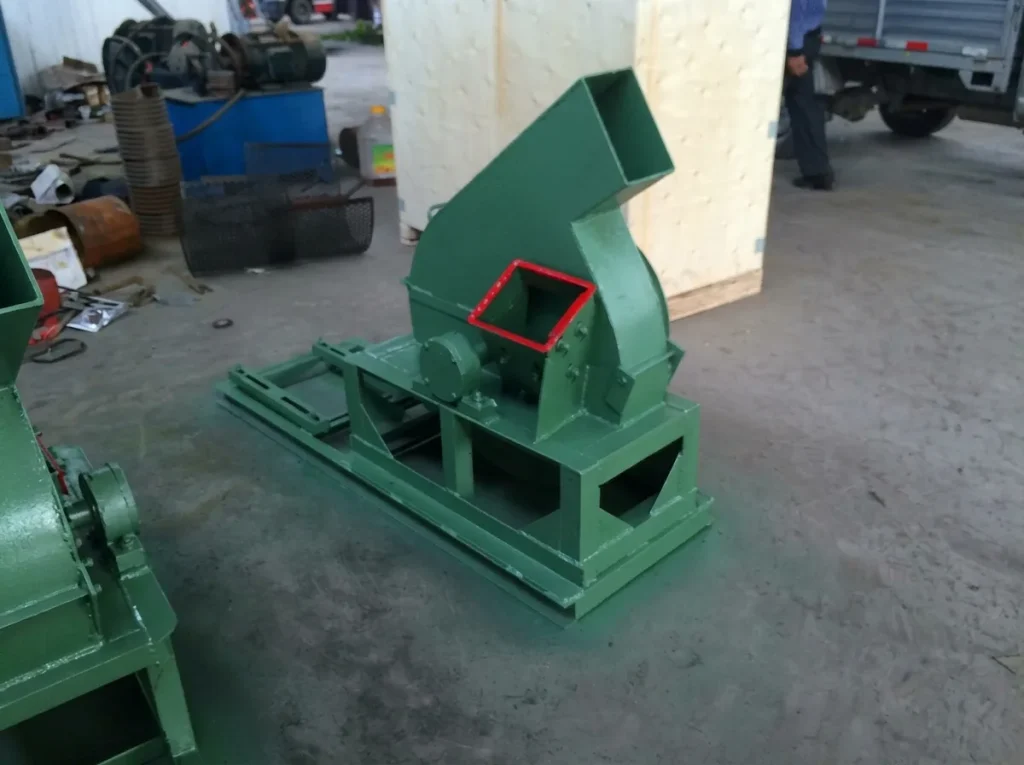

Vertical feed inlet

Suitable for small-scale applications; flexible and convenient.

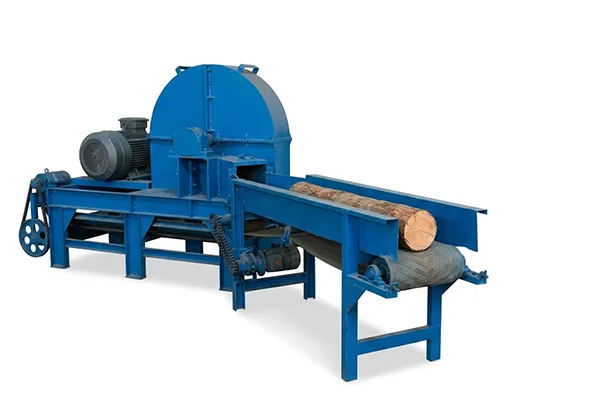

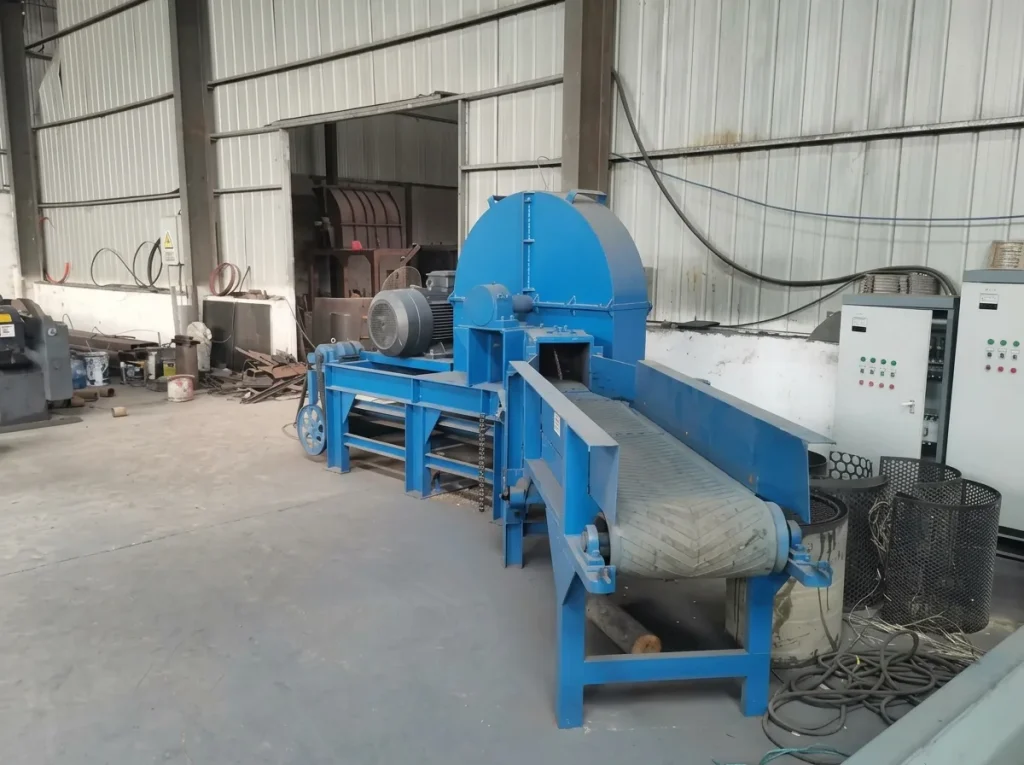

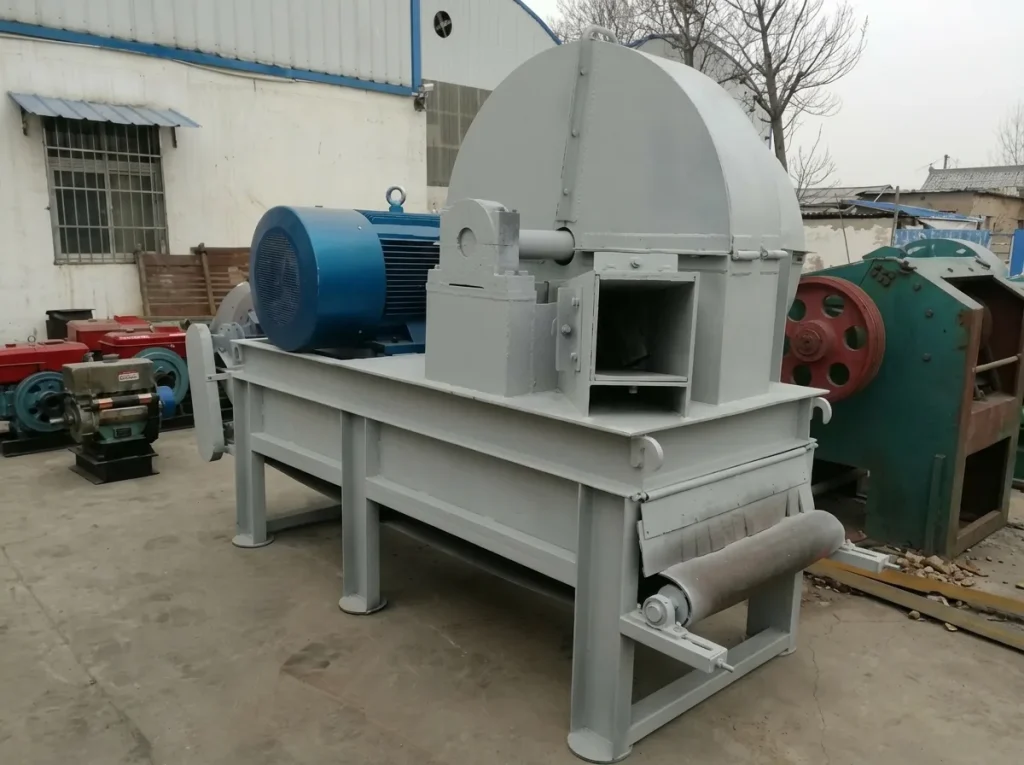

Horizontal feed inlet

Conveyor-compatible side feed inlet for higher throughput

Applications

Biomass Power Plant

Wood Pellet Plant

Plywood Factory

Paper Mill

Landscaping & Mulch

Need Help Choosing The Right Machine?

To contact our team, please click “Contact Us”.

Specifications

Detailed technical data and performance of our Comprehensive Wood Crushers.

MT-420
Host Power	7.5KW
Diesel Engine Specifications	15HP
Feed Size	≤ ø100mm
Output Size	20-50mm
Hammer Head Types	Blade-type
Number of Blades	3 pcs
Feed Opening Dimensions	110*110mm
Cutterhead Diameter	420mm
capacity	1 T/H
Equipment Weight	300kg
Equipment dimensions（LWH）	700500750mm

MT-600
Host Power	15KW
Diesel Engine Specifications	32HP
Feed Size	≤ ø170mm
Output Size	20-50mm
Hammer Head Types	Blade-type
Number of Blades	3 pcs
Feed Opening Dimensions	180*180mm
Cutterhead Diameter	600mm
capacity	3 T/H
Equipment Weight	550kg
Equipment dimensions（LWH）	950650800mm

MT-800
Host Power	30KW
Diesel Engine Specifications	60HP
Feed Size	≤ ø210mm
Output Size	20-50mm
Hammer Head Types	Blade-type
Number of Blades	4 pcs
Feed Opening Dimensions	220*230mm
Cutterhead Diameter	800mm
capacity	4 T/H
Equipment Weight	800kg
Equipment dimensions（LWH）	1100700900mm

MT-950
Host Power	37KW
Diesel Engine Specifications	102HP
Feed Size	≤ ø240mm
Output Size	20-50mm
Hammer Head Types	Blade-type
Number of Blades	4 pcs
Feed Opening Dimensions	250*260mm
Cutterhead Diameter	950mm
capacity	8 T/H
Equipment Weight	1300kg
Equipment dimensions（LWH）	160011001200mm

MT-1200
Host Power	55KW
Diesel Engine Specifications	108HP
Feed Size	≤ ø350mm
Output Size	20-50mm
Hammer Head Types	Blade-type
Number of Blades	4 pcs
Feed Opening Dimensions	350*360mm
Cutterhead Diameter	1200mm
capacity	10T/H
Equipment Weight	2100kg
Equipment dimensions（LWH）	220013001600mm

MT-1400
Host Power	90KW
Diesel Engine Specifications	155HP
Feed Size	≤ ø400mm
Output Size	20-50mm
Hammer Head Types	Blade-type
Number of Blades	4 pcs
Feed Opening Dimensions	420*430mm
Cutterhead Diameter	1400mm
capacity	14 T/H
Equipment Weight	2500kg
Equipment dimensions（LWH）	260015002300mm

The above specifications are for reference only and are subject to change without prior notice.

Need Help?

Our team is ready to help you choose the right model for your needs.

Download Specification

Get detailed specifications in PDF format.

DOWNLOAD PDF

Need Help Choosing The Right Machine?

Please click “Contact Us” or fill out the form.

Product Video

Watch our Comprehensive Wood Crusher in action and see how it works.

Need more information?

Contact our team to get more videos or a customized solution.

Gallery

Explore our Comprehensive Wood Crusher from different angles and details.

High Quality Images

All images are taken from real machines. Click to view larger high-resolution photos.

Download Images

You can download product images for your presentations and promotions.

DOWNLOAD ALL IMAGES

Share This Gallery

Share these images with your colleagues or partners.

Need more photos or information?

Contact our team to get more technical images or a customized solution.

Product Options

Customize your Comprehensive Wood Crusher to match your working conditions and production needs.

1.Power Options

Choose the power source that suits your operation.

Electric Motor

Stable performance, low noise suitable for fixed operation.

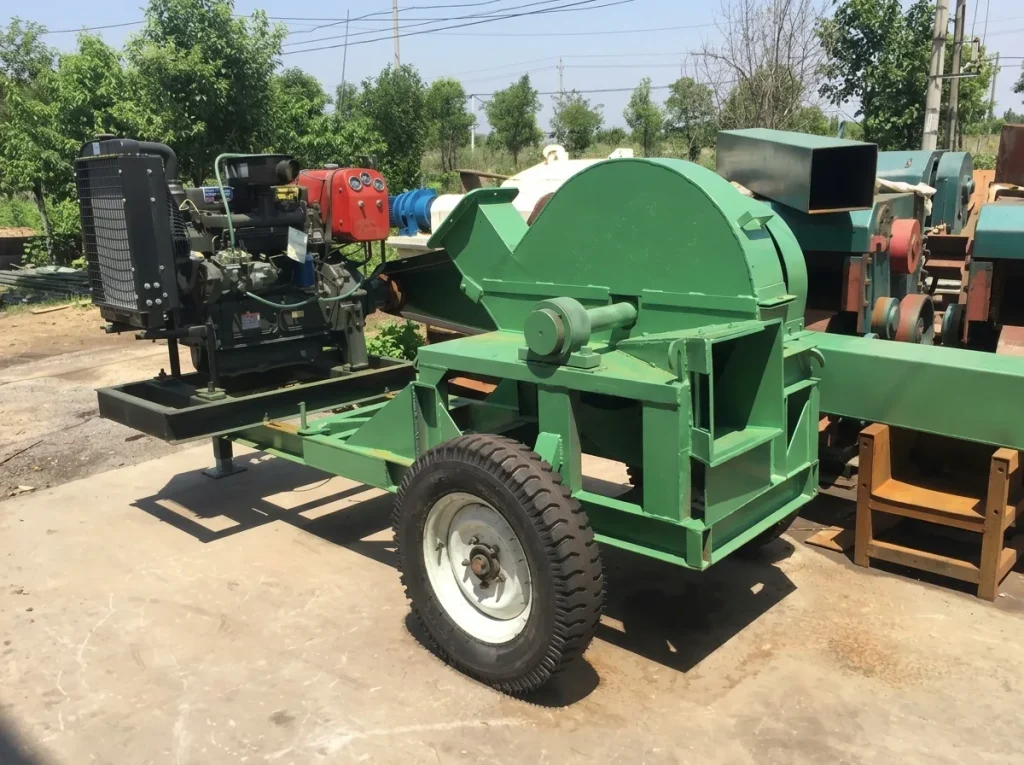

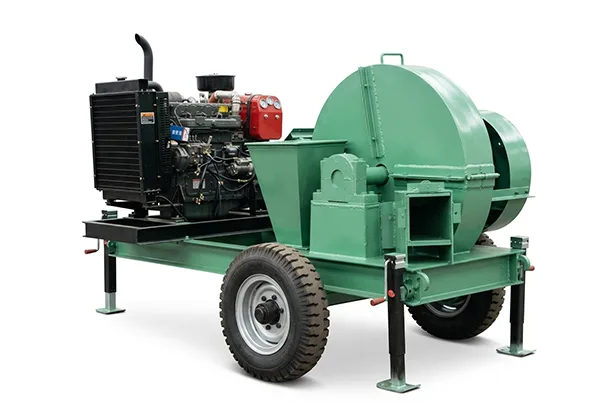

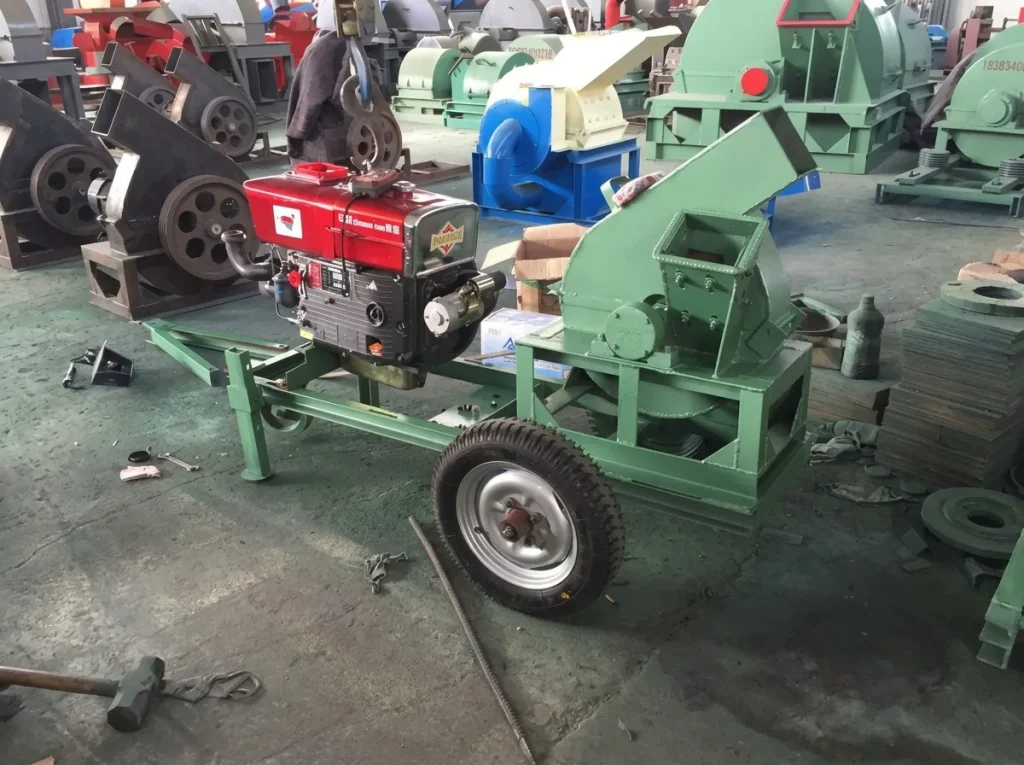

Diesel Engine

High power, portable and suitable for remote areas.

2.Mobility Options

Choose the mobility solution for your operation.

Fixed Type

Stable installation, suitable for fixed site.

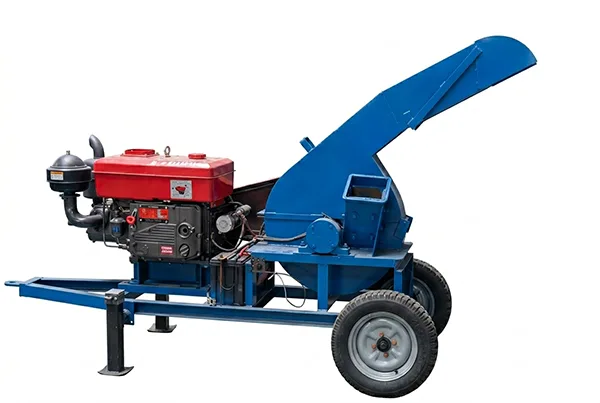

Mobile Type

Self-propelled via tracks or towed via wheels for convenient transport.
