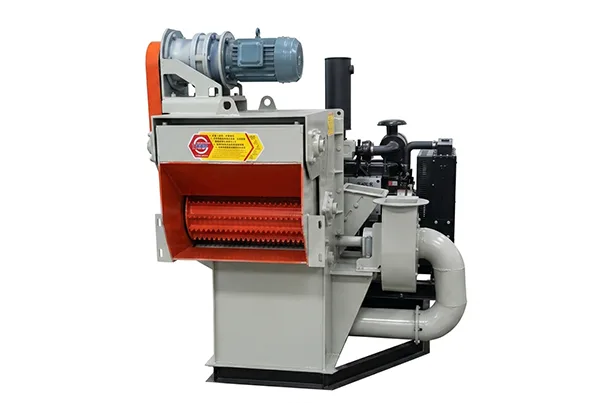

Forced-feed wood crusher

Equipment for producing 1-20 mm wood chips

0-1300MM

Feed size（width）

22-90KW

Power

0.5-4T/H

Capacity

Get detailed specifications in PDF format.

Download PDF

Overview

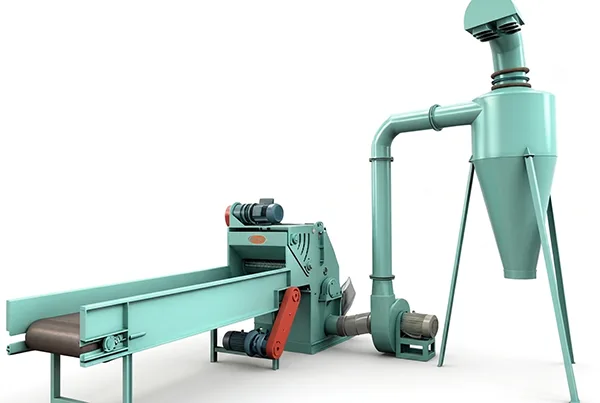

The forced-feeding wood crusher is a high-efficiency crushing machine designed specifically for the primary processing of materials. Equipped with a forced-feeding mechanism, it easily handles logs, branches, planks, straw, and irregularly shaped waste wood, producing uniform wood chips with particle sizes ranging from 1 to 20 millimeters. It is widely used in applications such as biomass pellet production, organic composting, livestock bedding, and wood waste recycling.

High Efficiency

High crushing capacity, stable performance

Wide Application

Suitable for a wide range of raw materials and industries.

Durable Design

High-quality components ensure a long service life.

Easy Maintenance

Simple structure, easy to operate.

Key Specifications

Model	power (kw)	Feed size（mm）	Discharge size (mm)	capacity (t/h)
500	22kw	≤ w500	1-20	0.5-1
600	30kw	≤ w600	1-20	1-1.5
800	45kw	≤ w800	1-20	1.5-2.5
1000	75kw	≤ w1000	1-20	2-2.5
1300	90kw	≤ w1300	1-20	3.5-4

Feed inlet type

Single feed inlet

Suitable for shredding wooden boards, small branches, and straw.

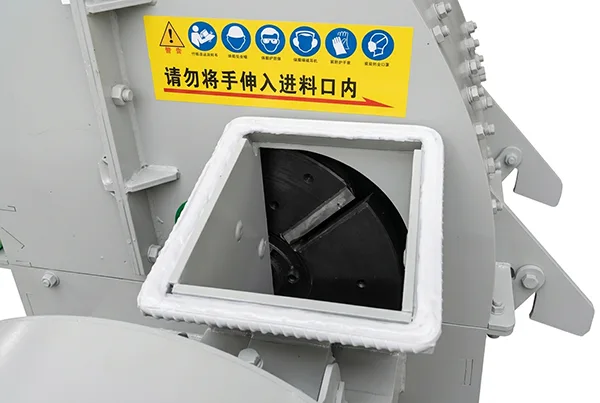

Dual feed inlets

The other feed inlet can process large-diameter logs.

Applications

Waste Recycling & Energy

Wood Pellet Plant

Plywood Factory

Livestock & Poultry

Composting & Agriculture

Need Help Choosing The Right Machine?

To contact our team, please click “Contact Us”.

Specifications

Detailed technical data and performance of our Comprehensive Wood Crushers.

MT-500
Host Power	22KW
Diesel Engine Specifications	60HP
Feed Size	≤ ø100mm，w500mm
Output Size	1-20mm（Adjustable）
Hammer Head Types	Hammer blade
Number of hammer blades	30 pcs
Infeed conveyor dimensions	L2700*W500mm
Feed opening dimensions	500*150mm
capacity	0.5-1 T/H
Equipment Weight	1100kg
Equipment dimensions（LWH）	480040003600mm

MT-600
Host Power	30KW
Diesel Engine Specifications	70HP
Feed Size	≤ ø100mm，w600mm
Output Size	1-20mm（Adjustable）
Hammer Head Types	Hammer blade
Number of hammer blades	40 pcs
Infeed conveyor dimensions	L2700*W600mm
Feed opening dimensions	600*150mm
capacity	1.5-2 T/H
Equipment Weight	1300kg
Equipment dimensions（LWH）	480042003700mm

MT-800
Host Power	45KW
Diesel Engine Specifications	155HP
Feed Size	≤ ø120mm，w800mm
Output Size	1-20mm（Adjustable）
Hammer Head Types	Hammer blade
Number of hammer blades	60 pcs
Infeed conveyor dimensions	L2900*W800mm
Feed opening dimensions	800*150mm
capacity	1.5-2.5 T/H
Equipment Weight	1800kg
Equipment dimensions（LWH）	530049003700mm

MT-1000
Host Power	75KW
Diesel Engine Specifications	155HP
Feed Size	≤ ø150mm，w1000mm
Output Size	1-20mm（Adjustable）
Hammer Head Types	Hammer blade
Number of hammer blades	70 pcs
Infeed conveyor dimensions	L3000*W1000mm
Feed opening dimensions	1000*250mm
capacity	2-2.5 T/H
Equipment Weight	2500kg
Equipment dimensions（LWH）	570055004300mm

MT-1300
Host Power	90KW
Diesel Engine Specifications	220HP
Feed Size	≤ ø150mm，w1300mm
Output Size	1-20mm（Adjustable）
Hammer Head Types	Hammer blade
Number of hammer blades	100 pcs
Infeed conveyor dimensions	L4000*W1300mm
Feed opening dimensions	1300*250mm
capacity	3.5-4 T/H
Equipment Weight	3500kg
Equipment dimensions（LWH）	670099004500mm

The above specifications are for reference only and are subject to change without prior notice.

Need Help?

Our team is ready to help you choose the right model for your needs.

Download Specification

Get detailed specifications in PDF format.

DOWNLOAD PDF

Need Help Choosing The Right Machine?

Please click “Contact Us” or fill out the form.

Product Video

Watch our Comprehensive Wood Crusher in action and see how it works.

Need more information?

Contact our team to get more videos or a customized solution.

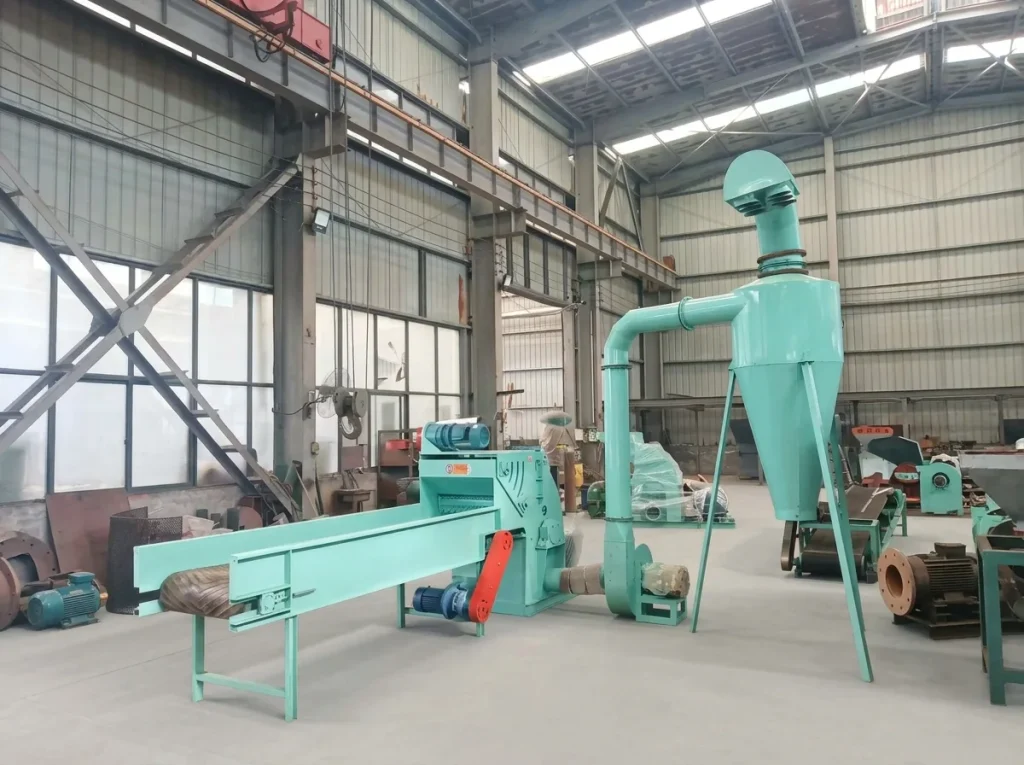

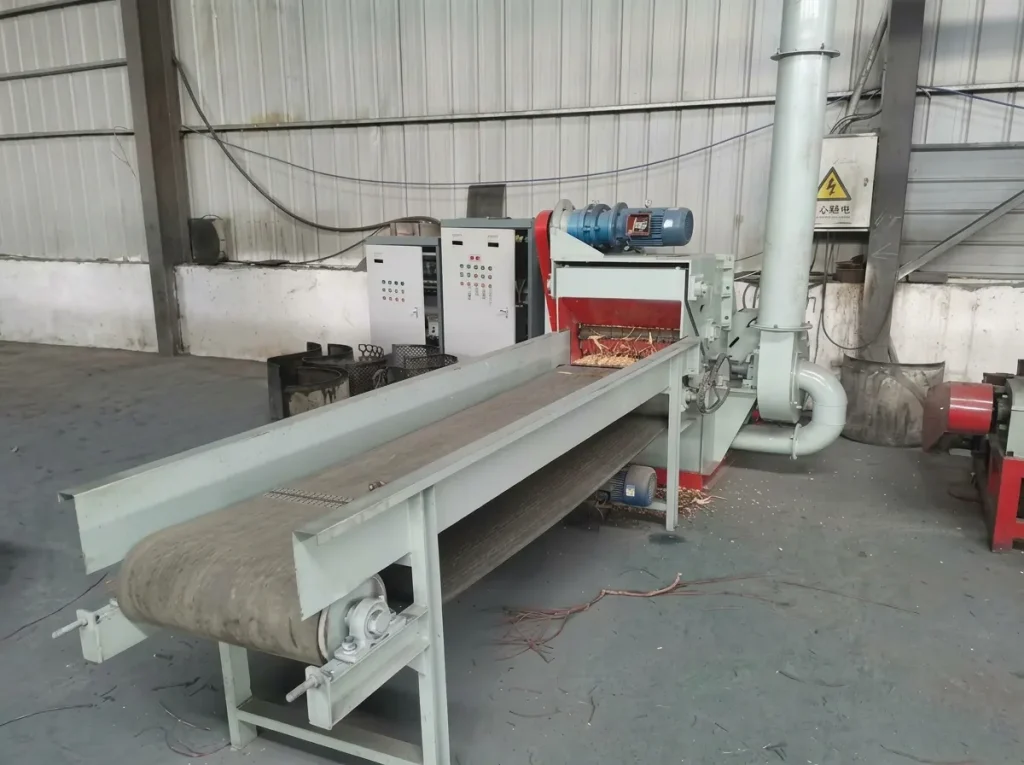

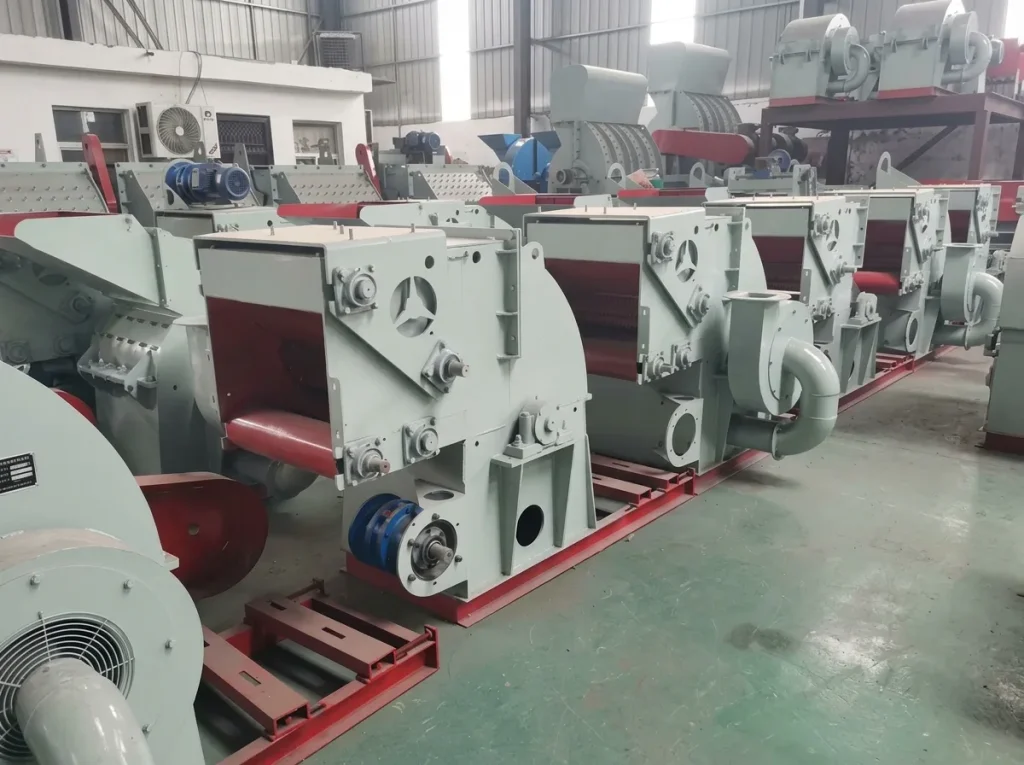

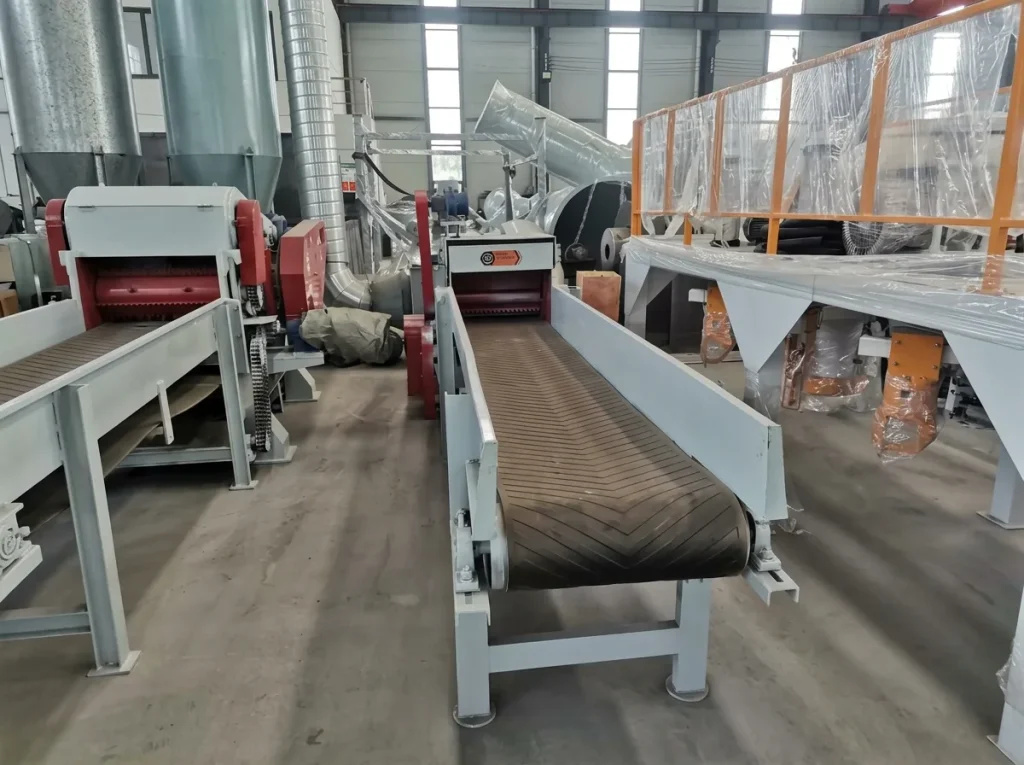

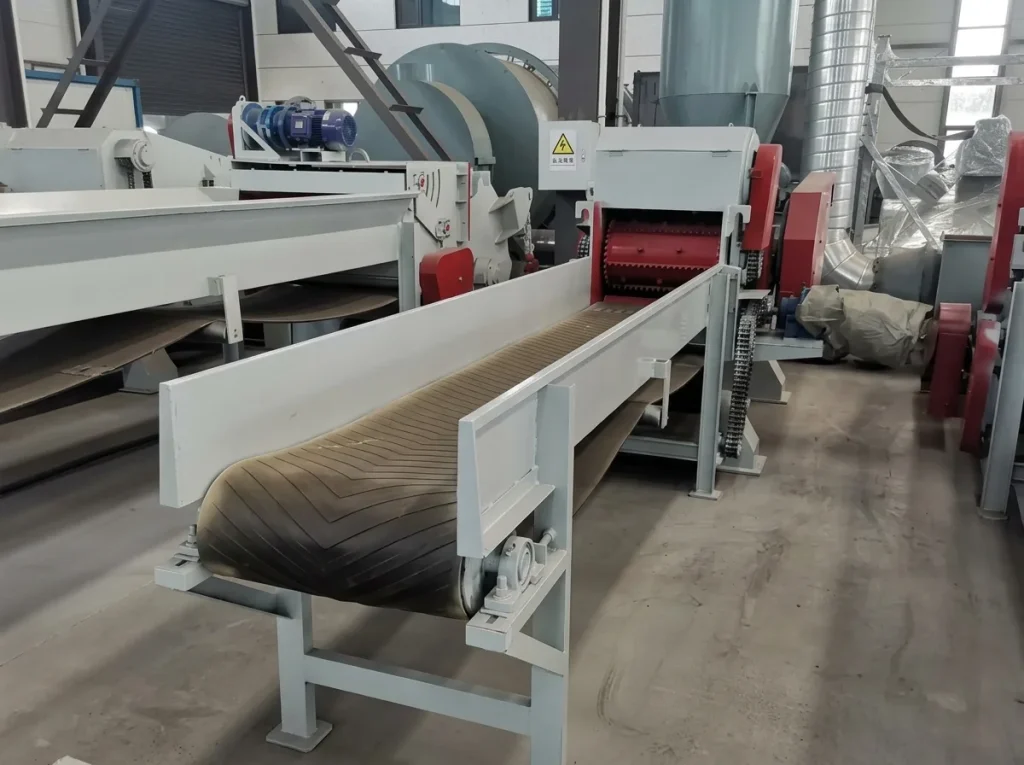

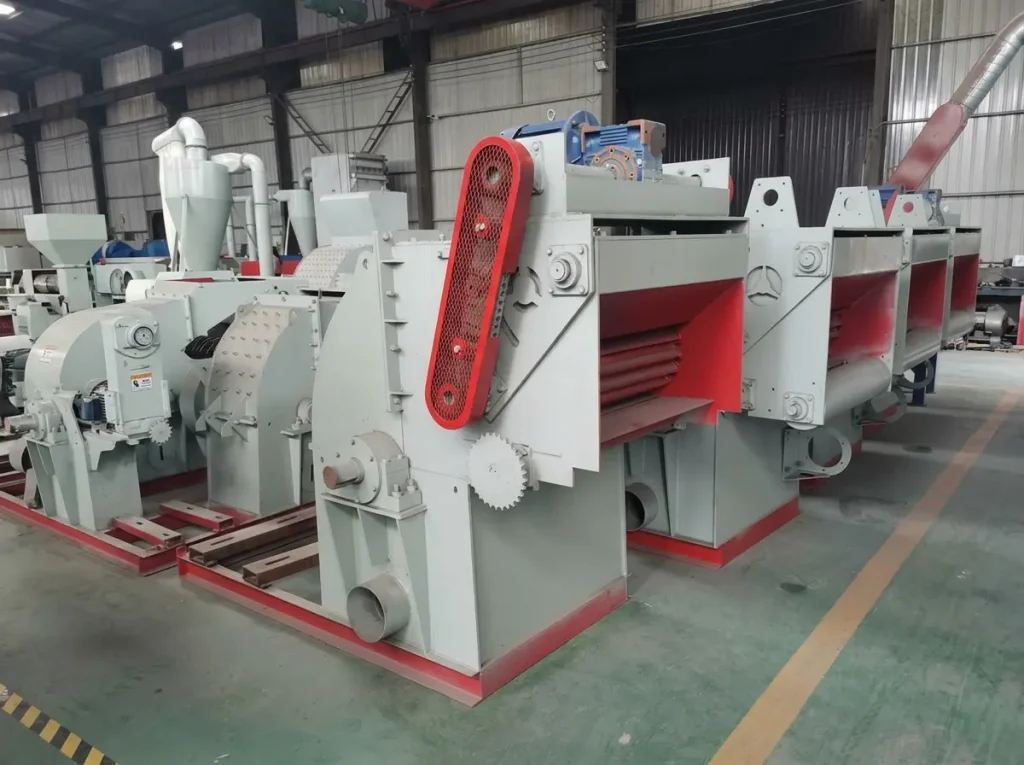

Gallery

Explore our Comprehensive Wood Crusher from different angles and details.

High Quality Images

All images are taken from real machines. Click to view larger high-resolution photos.

Download Images

You can download product images for your presentations and promotions.

DOWNLOAD ALL IMAGES

Share This Gallery

Share these images with your colleagues or partners.

Need more photos or information?

Contact our team to get more technical images or a customized solution.

Product Options

Customize your Comprehensive Wood Crusher to match your working conditions and production needs.

1.Power Options

Choose the power source that suits your operation.

Electric Motor

Stable performance, low noise suitable for fixed operation.

Diesel Engine

High power, portable and suitable for remote areas.

2.Mobility Options

Choose the mobility solution for your operation.

Fixed Type

Stable installation, suitable for fixed site.

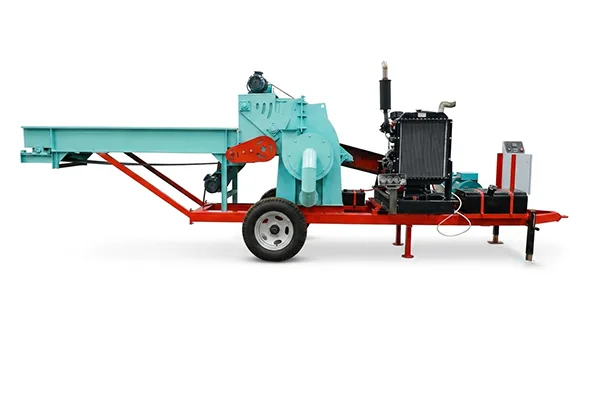

Mobile Type

Self-propelled via tracks or towed via wheels for convenient transport.
