Multi-purpose hammer mill

Multifunctional Wood Crusher

Equipment for producing 1-20 mm wood chips

0-100MM

Feed size

22-110KW

Power

0.5-5T/H

Capacity

Get detailed specifications in PDF format.

Download PDF

Overview

The multifunctional wood crusher is a high-efficiency secondary fine-crushing machine designed for the precise reduction of pre-crushed wood. Specifically engineered to further process coarse wood chips, small branches, timber offcuts, and crop straw, it yields uniform fine particles ranging from 1 to 20 mm in size and is widely used in biomass pellet production, wood-based panel manufacturing, livestock bedding, and organic composting sectors.

High Efficiency

High crushing capacity, stable performance

Wide Application

Suitable for a wide range of raw materials and industries.

Durable Design

High-quality components ensure a long service life.

Easy Maintenance

Simple structure, easy to operate.

Key Specifications

Model	power (kw)	Feed size（mm）	Discharge size (mm)	capacity (t/h)
500	22kw	≤ 100	1-20	0.5-1
600	37kw	≤ 100	1-20	1-1.5
800	45kw	≤ 100	1-20	1.5-2
1000	75kw	≤ 100	1-20	2-3
1300	55kw*2	≤ 100	1-20	3-4
1500	55kw*2	≤ 100	1-20	4-5

Feed inlet type

Single feed inlet

Suitable for shredding wooden boards, small branches, and straw.

Dual feed inlets

The other feed inlet can process large-diameter logs.

Applications

Waste Recycling & Energy

Wood Pellet Plant

Plywood Factory

Composting & Agriculture

Livestock & Poultry

Need Help Choosing The Right Machine?

To contact our team, please click “Contact Us”.

Specifications

Detailed technical data and performance of our Comprehensive Wood Crushers.

MT-500
Host Power	22KW
Diesel Engine Specifications	60HP
Feed Size	≤ 100mm
Output Size	1-20mm（Adjustable）
Hammer Head Types	Hammer blade
Number of Blades	30 pcs
Feed Opening Width	600mm
Feed Inlet Height	250mm（Customizable）
capacity	0.5-1 T/H
Equipment Weight	500kg
Equipment dimensions（LWH）	200040003500mm

MT-600
Host Power	37KW
Diesel Engine Specifications	102HP
Feed Size	≤ 100mm
Output Size	1-20mm（Adjustable）
Hammer Head Types	Hammer blade
Number of Blades	40 pcs
Feed Opening Width	600mm
Feed Inlet Height	250mm（Customizable）
capacity	1-1.5 T/H
Equipment Weight	650kg
Equipment dimensions（LWH）	220042003700mm

MT-800
Host Power	45KW
Diesel Engine Specifications	108HP
Feed Size	≤ 100mm
Output Size	1-20mm（Adjustable）
Hammer Head Types	Hammer blade
Number of Blades	60 pcs
Feed Opening Width	800mm
Feed Inlet Height	300mm（Customizable）
capacity	1.5-2 T/H
Equipment Weight	950kg
Equipment dimensions（LWH）	230050003700mm

MT-1000
Host Power	75KW
Diesel Engine Specifications	155HP
Feed Size	≤ 100mm
Output Size	1-20mm（Adjustable）
Hammer Head Types	Hammer blade
Number of Blades	70 pcs
Feed Opening Width	1000mm
Feed Inlet Height	300mm（Customizable）
capacity	2-3 T/H
Equipment Weight	1500kg
Equipment dimensions（LWH）	270055004600mm

MT-1300
Host Power	55KW+55KW
Diesel Engine Specifications	380HP
Feed Size	≤ 100mm
Output Size	1-20mm（Adjustable）
Hammer Head Types	Hammer blade
Number of Blades	100 pcs
Feed Opening Width	1300mm
Feed Inlet Height	600mm（Customizable）
capacity	3-4 T/H
Equipment Weight	2100kg
Equipment dimensions（LWH）	1100095004400mm

MT-1500
Host Power	55KW+55KW
Diesel Engine Specifications	380HP
Feed Size	≤ 100mm
Output Size	1-20mm（Adjustable）
Hammer Head Types	Hammer blade
Number of Blades	100 pcs
Feed Opening Width	1500mm
Feed Inlet Height	800mm（Customizable）
capacity	4-5 T/H
Equipment Weight	2800kg
Equipment dimensions（LWH）	1200070004500mm

The above specifications are for reference only and are subject to change without prior notice.

Need Help?

Our team is ready to help you choose the right model for your needs.

Download Specification

Get detailed specifications in PDF format.

DOWNLOAD PDF

Need Help Choosing The Right Machine?

Please click “Contact Us” or fill out the form.

Product Video

Watch our Comprehensive Wood Crusher in action and see how it works.

Need more information?

Contact our team to get more videos or a customized solution.

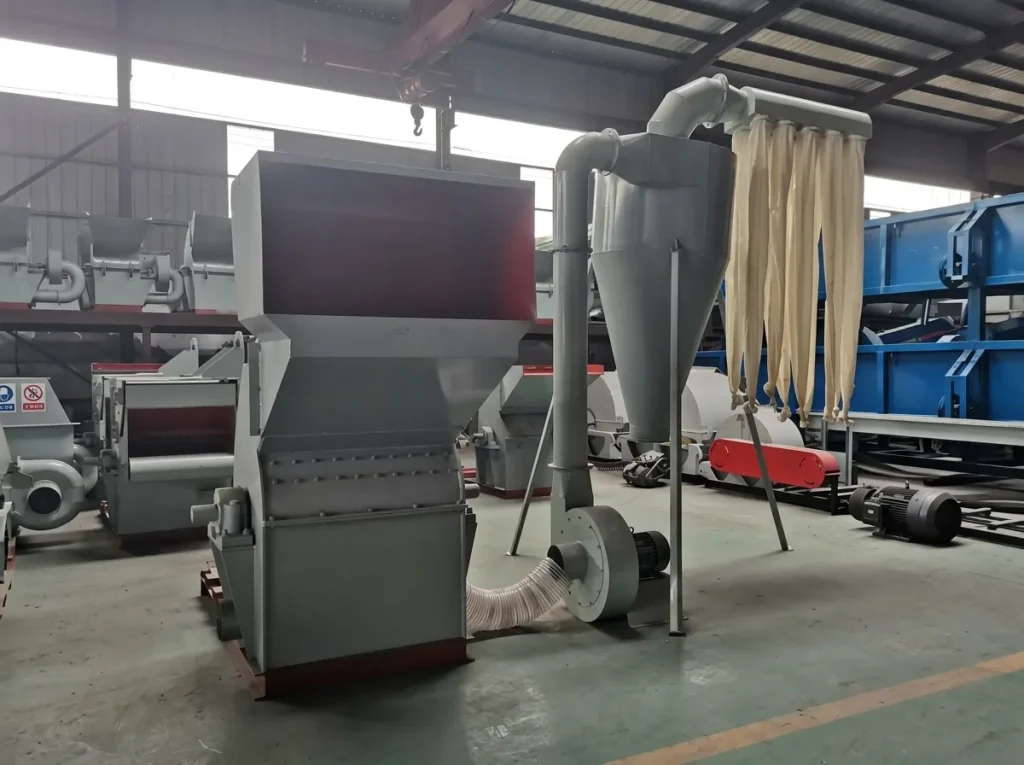

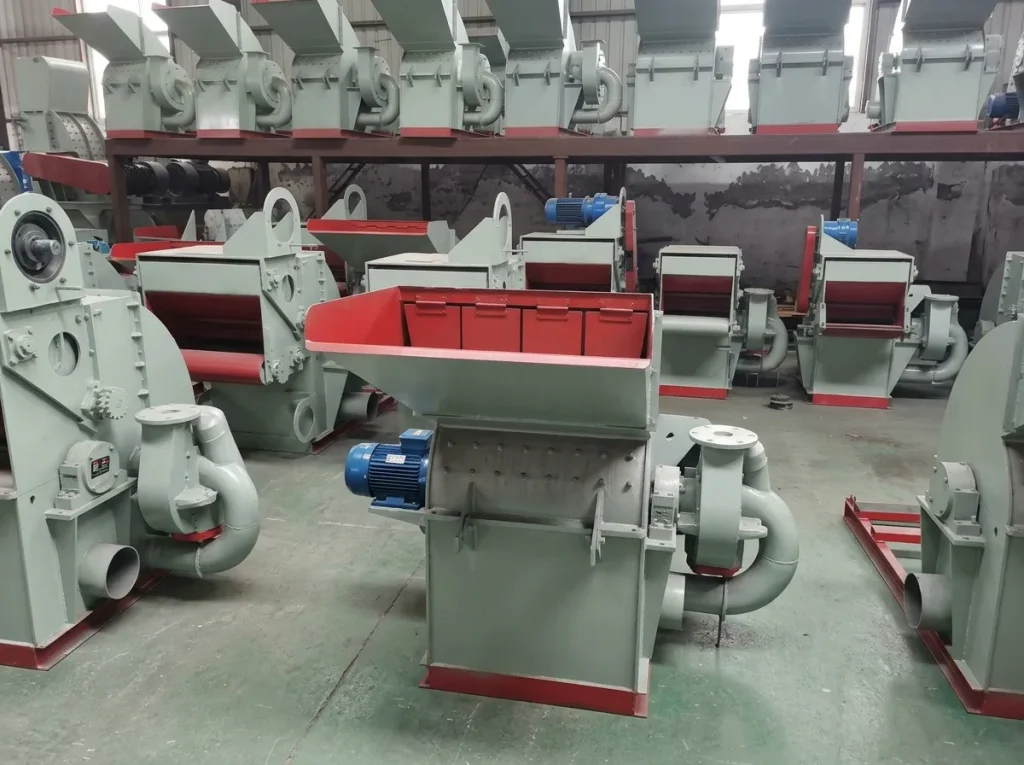

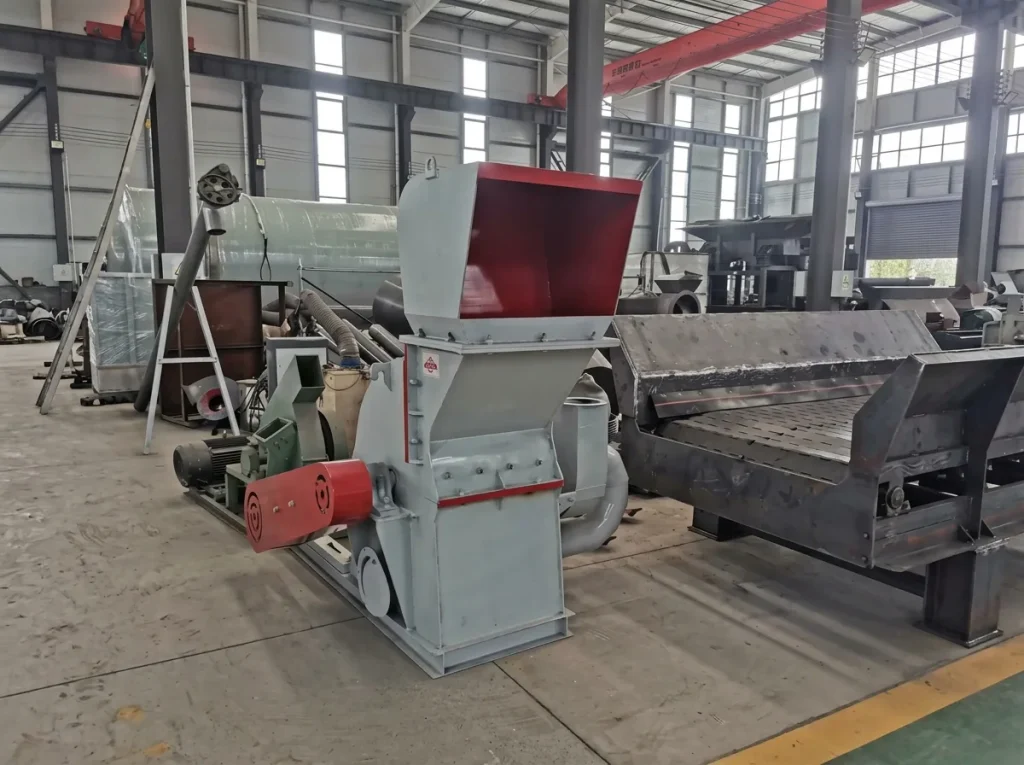

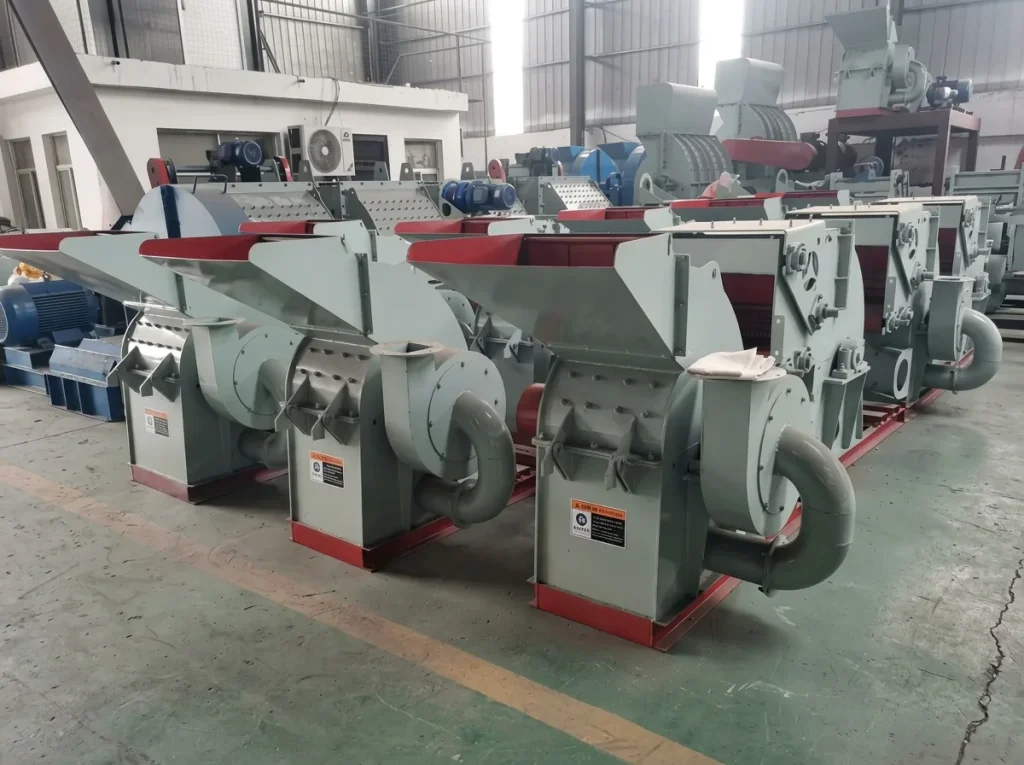

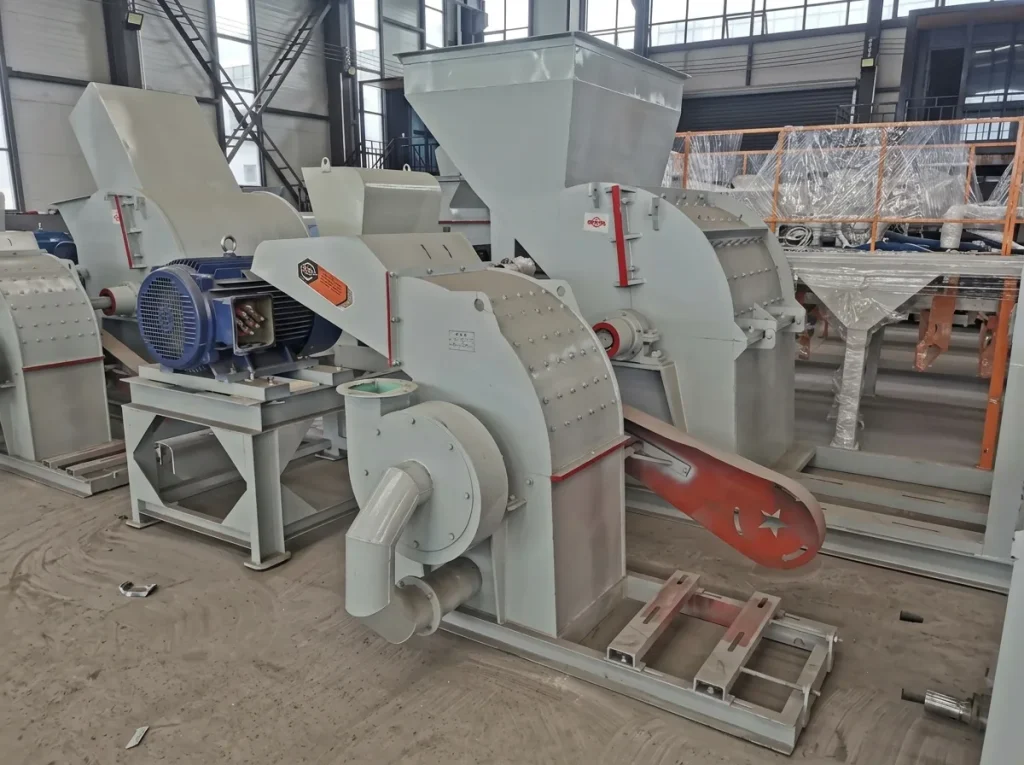

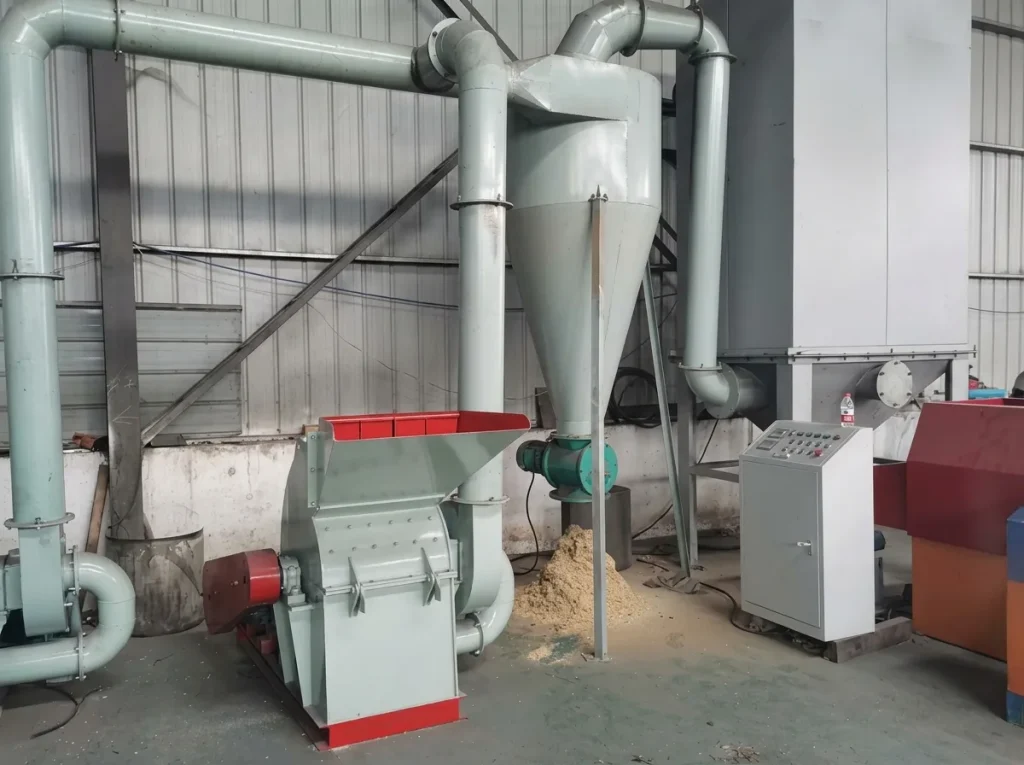

Gallery

Explore our Comprehensive Wood Crusher from different angles and details.

High Quality Images

All images are taken from real machines. Click to view larger high-resolution photos.

Download Images

You can download product images for your presentations and promotions.

DOWNLOAD ALL IMAGES

Share This Gallery

Share these images with your colleagues or partners.

Need more photos or information?

Contact our team to get more technical images or a customized solution.

Product Options

Customize your Comprehensive Wood Crusher to match your working conditions and production needs.

1.Power Options

Choose the power source that suits your operation.

Electric Motor

Stable performance, low noise suitable for fixed operation.

Diesel Engine

High power, portable and suitable for remote areas.

2.Mobility Options

Choose the mobility solution for your operation.

Fixed Type

Stable installation, suitable for fixed site.

Mobile Type

Self-propelled via tracks or towed via wheels for convenient transport.
