Disc Chipper
The Disc Chipper is a robust machine designed for high-volume production of uniform wood chips from logs and wood waste, ideal for pulp, paper, and biomass energy.
The disc wood chipper is specifically designed to process logs, branches, and wood waste into uniform wood chips. Its core component is a heavy-duty rotating disc equipped with hardened blades that shreds wood through a shearing action. Renowned for its robust construction and high production efficiency, this equipment delivers a consistent output of precisely sized wood chips. It is ideally suited for the pulp, paper, panel, and biomass energy industries, establishing itself as a fundamental piece of equipment in modern wood processing.
Disc chippers excel at high-volume production of uniform chips, crucial for pulp and biomass. Their robust, simple design ensures durability, low maintenance, and consistent output for industrial processing.
The disc wood chipper boasts versatile applications and can process a wide range of materials. It is particularly well-suited for handling whole logs, lumber boards, and wood blocks from various tree species. Additionally, it efficiently processes forest and sawmill residues such as branches, tree tops, and offcuts. This equipment is indispensable for paper mills, biomass power plants, and wood recycling centers.
Different models of disc wood chippers offer varying production capacities. Manto machinery offers a variety of capacity options: 0.8-1 t/h, 2-3 t/h, 3-4 t/h, 7-8 t/h, 8-10 t/h, and 12-14 t/h. These options cater to diverse production needs.
The disc wood chipper stands out for its exceptional efficiency and outstanding value for money. Its streamlined design ensures remarkable durability and minimal maintenance requirements, resulting in low operating costs. It consistently produces uniform, high-quality wood chips, which are crucial for achieving optimal yields in pulp and paper production as well as biomass energy generation. The perfect combination of reliability, output quality, and production efficiency makes it an excellent and cost-effective choice for intensive industrial processing applications.
0-380MM
Feed size(Log size)
7.5-90KW
power
1-14T/H
Production capacity
Working PPowertrain and Chassis Options

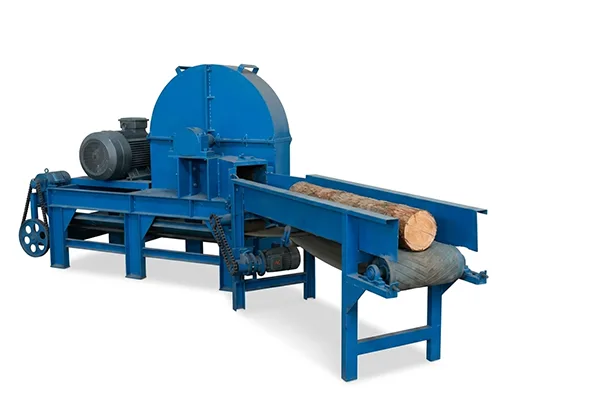

Motor-driven model

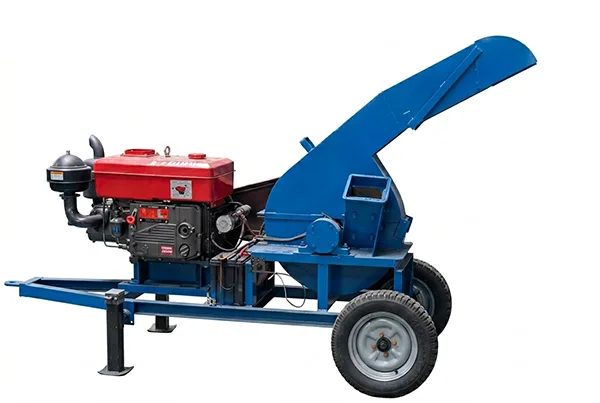

Diesel Mobile Version
Model And Technical Parameter
| Model | power (kw) | Inlet size (mm) | Maximum feed size (mm) | Finished Size (mm) | capacity (t/h) |
|---|---|---|---|---|---|
| 420 | 7.5kw | 110*110 | 100 | 10-30 | 0.8-1 |
| 600 | 15kw | 180*180 | 170 | 10-30 | 2-3 |
| 800 | 30kw | 220*230 | 210 | 10-30 | 3-4 |
| 950 | 37kw | 250*260 | 240 | 10-30 | 7-8 |
| 1200 | 55kw | 320*330 | 300 | 10-30 | 8-10 |
| 1400 | 90kw | 400*410 | 380 | 10-30 | 12-14 |
Note: The parameters in the table are for reference only. Products are subject to updates and changes. For the latest information, please contact us.
