Comprehensive Wood Crusher

The Comprehensive Wood Crusher is a primary coarse crushing equipment, serving as the main machine in the first stage of wood processing.

The Comprehensive Wood Crusher is a coarse crushing machine, designed for primary processing of logs, branches, and waste wood in recycling lines.Can crush these raw materials into manageable sizes.
As a key coarse crushing unit, the Comprehensive wood crusher ensures reliable first-stage processing of wood materials in industrial recycling systems.
Different models of Comprehensive Wood Crusher have different production capacities. Manto Machinery offers a range of capacities of 3-5t/h, 5-8t/h, 8-10t/h, 15-20t/h, and 30-40t/h.These options meet diverse production capacity requirements.
Manto machinery comprehensive wood crushers can crush a wide range of raw materials, Suitable for wood fiber materials such as logs, branches, planks, straw, building formwork, wooden pallets, discarded furniture, bamboo, coconut shells, etc. After crushing, they can be used in biomass fuel, composting, and edible fungus cultivation.
The comprehensive wood crusher can be powered by an electric motor or a diesel engine and offers a choice of mobile chassis—either wheeled (towable) or self-propelled tracked versions. The crushing shaft is available with either a blade or hammer configuration, making the machine adaptable to various applications and widely used in sawmills, forestry, and the biomass fuel industry.

0-400MM

Feed size(Log size)

37-160KW

power

3-40T/H

Production capacity

Accessories

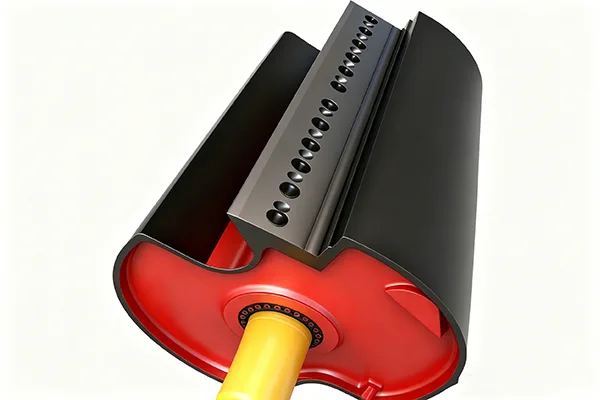

The blade-type crushing shaft produces uniformly sized output, making it suitable for shredding logs, branches, and straw.

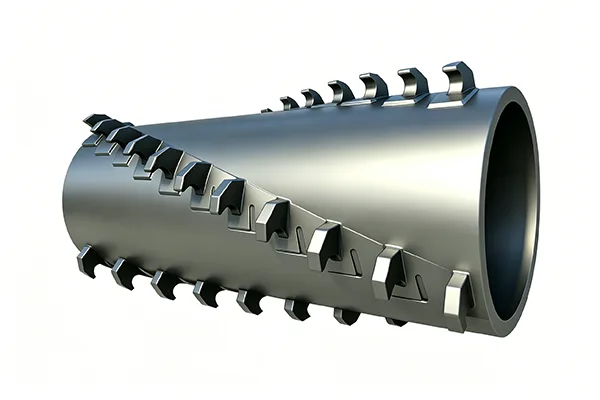

The hammer-type crushing shaft is suitable for shredding wooden boards, branches, and wooden pallets. It can tolerate the presence of small amounts of light metal—such as nails or thin sheet metal—in the raw material.

Powertrain and Chassis Options

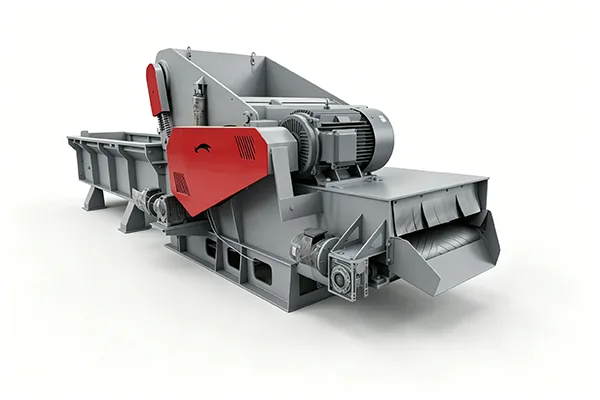

Motor-driven model

Diesel-powered wheeled chassis

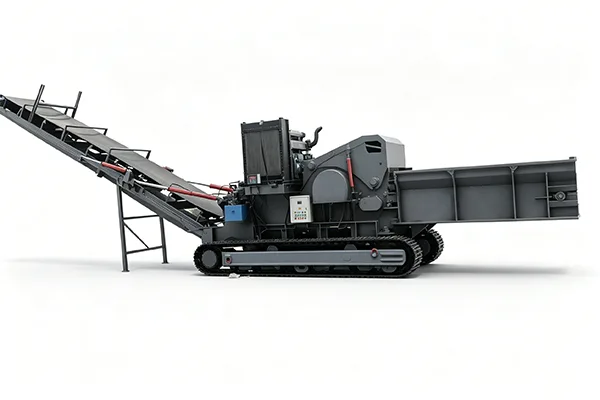

Diesel-powered crawler undercarriage

Model and technical parameters

Model600800100013001600
power
(kw)
37kw55kw90kw110kw160kw
Feed opening width
(mm)
600800100013001600
Maximum feed size
(mm)
200250280350400
Feed conveyor dimensions4.5m4.5m5m5m5m
Discharge conveyor dimensions6m8m10m10m10m
Discharge size
(mm)
5-505-5010-5020-5020-50
capacity
(t/h)
3-55-88-1015-2030-40

Note: The parameters in the table are for reference only. Products are subject to updates and changes. For the latest information, please contact us.
The maximum feed size data refers to the diameter of the logs.
